WZJ Series Self-Priming JET Pumps

Performance Range:
◎Max. Flow: 6m3/h
◎Max. Head: 830m

Application condition:
◎ Suction head up to 9m
◎ Liquid temperature up to +40℃
◎ Ambient temperature up to +40℃
◎ Max. Working pressure: 5bar
◎ Voltage fluctuation should not exceed 10% of rated value.
◎ pH: 6.5 to 8.5

Certificate:

Application fields:
◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
◎ Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.

Features:
◎ The JET type self-priming pump
◎ High suction, with short time
◎ Different impeller material configuration Motor & Generator
◎ Single-Phase 220V/50Hz
◎ Three-Phase 380V/50Hz
◎ Motor & Generator: 2 pole asynchronous Motor & Generator, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
◎ Protection: IP44
◎ Insulation: Class B

Optional Available On Request:
◎ 304 stainless steel welding shaft
◎ Electrophoretic pump body and connections
◎ NSK bearing
◎ Motor & Generator whose insulation class is F
◎ Other voltage or frequency is 60Hz

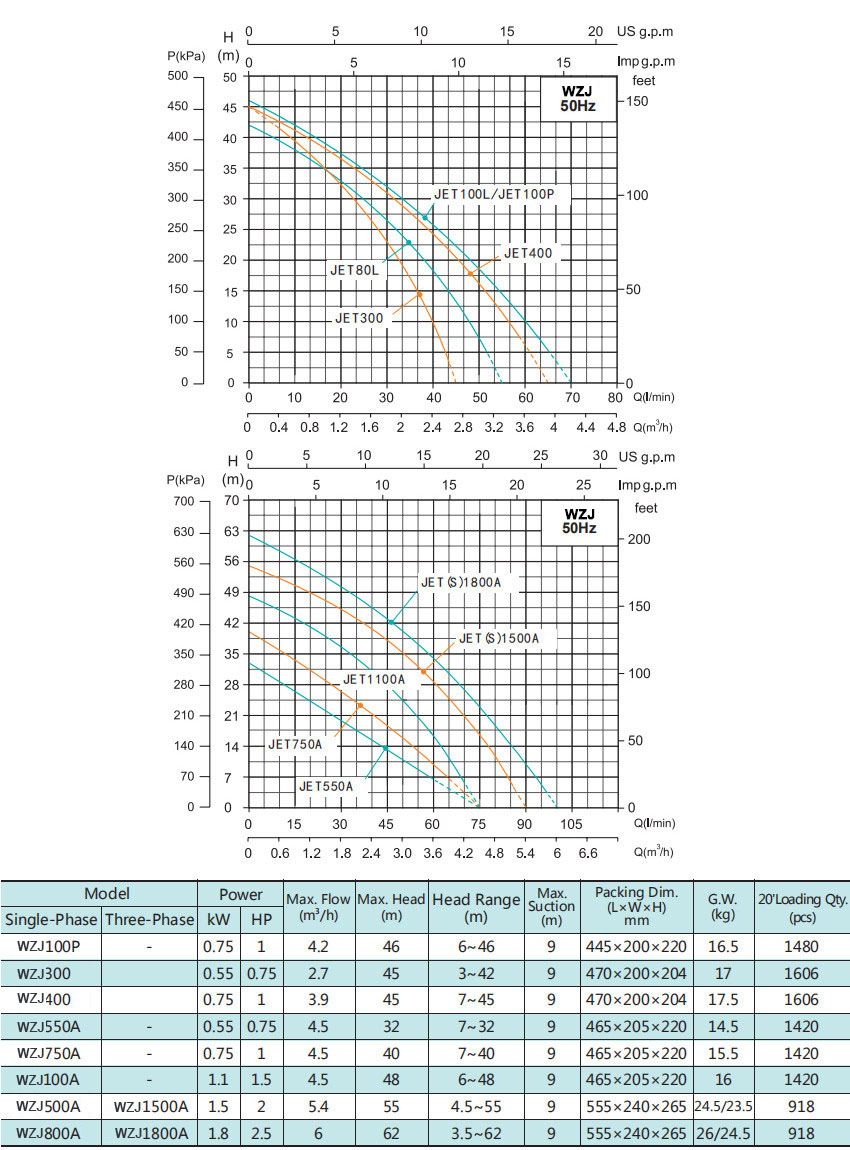

Performance Curve
